SPECIFICATIONS

5V Short Circuit Alarm: YES,LED&Buzzer

Brand Name: BIQU

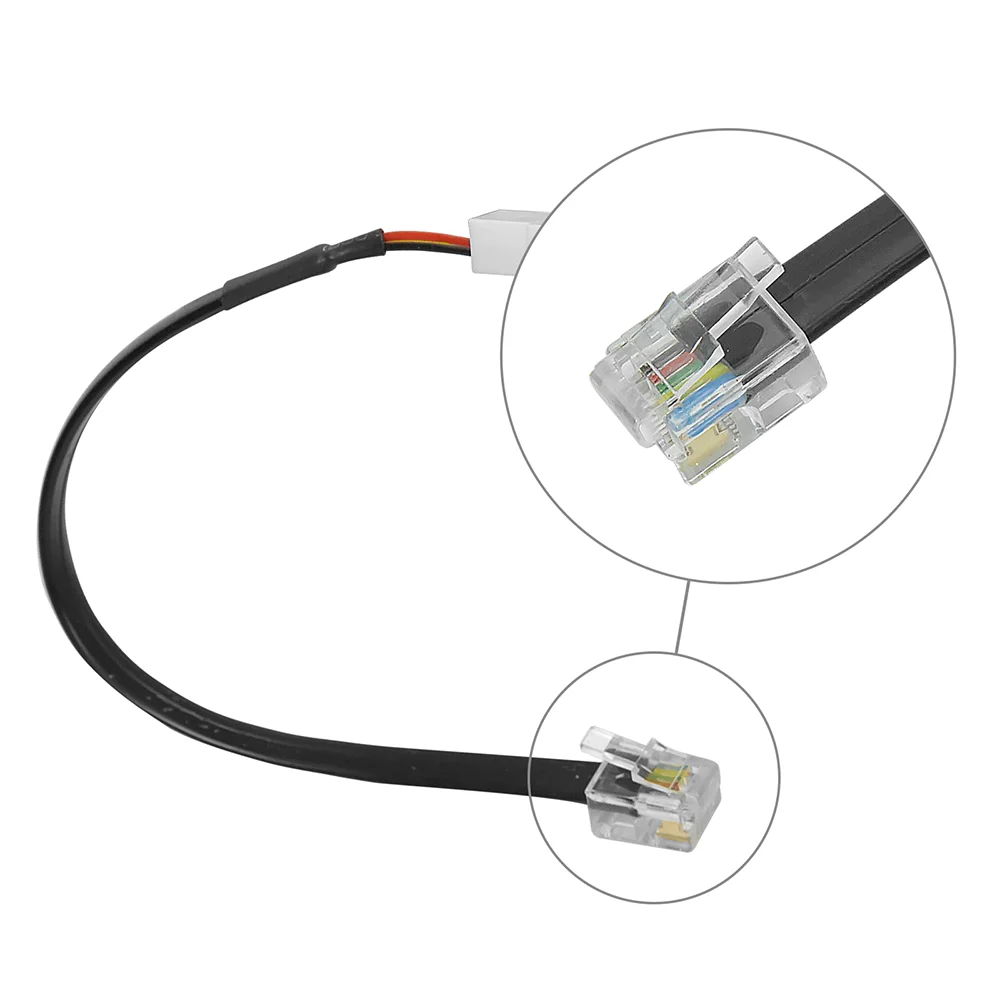

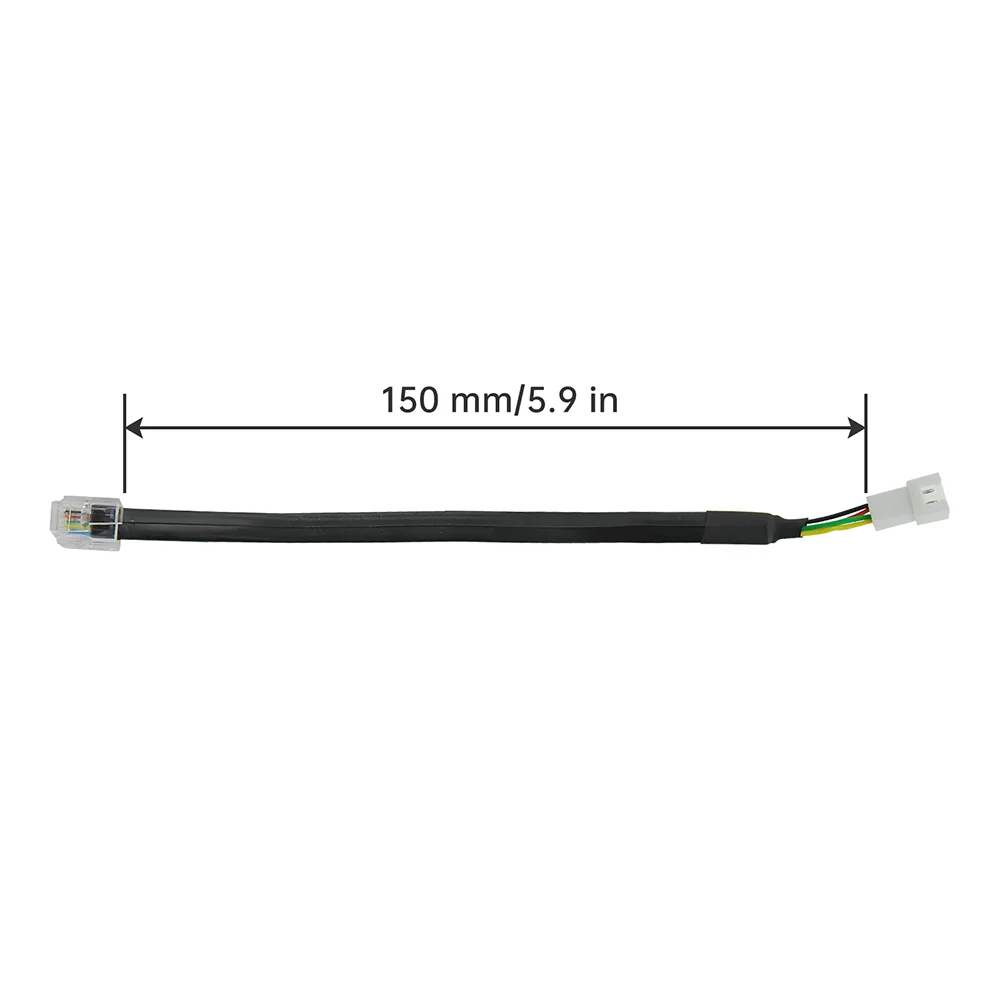

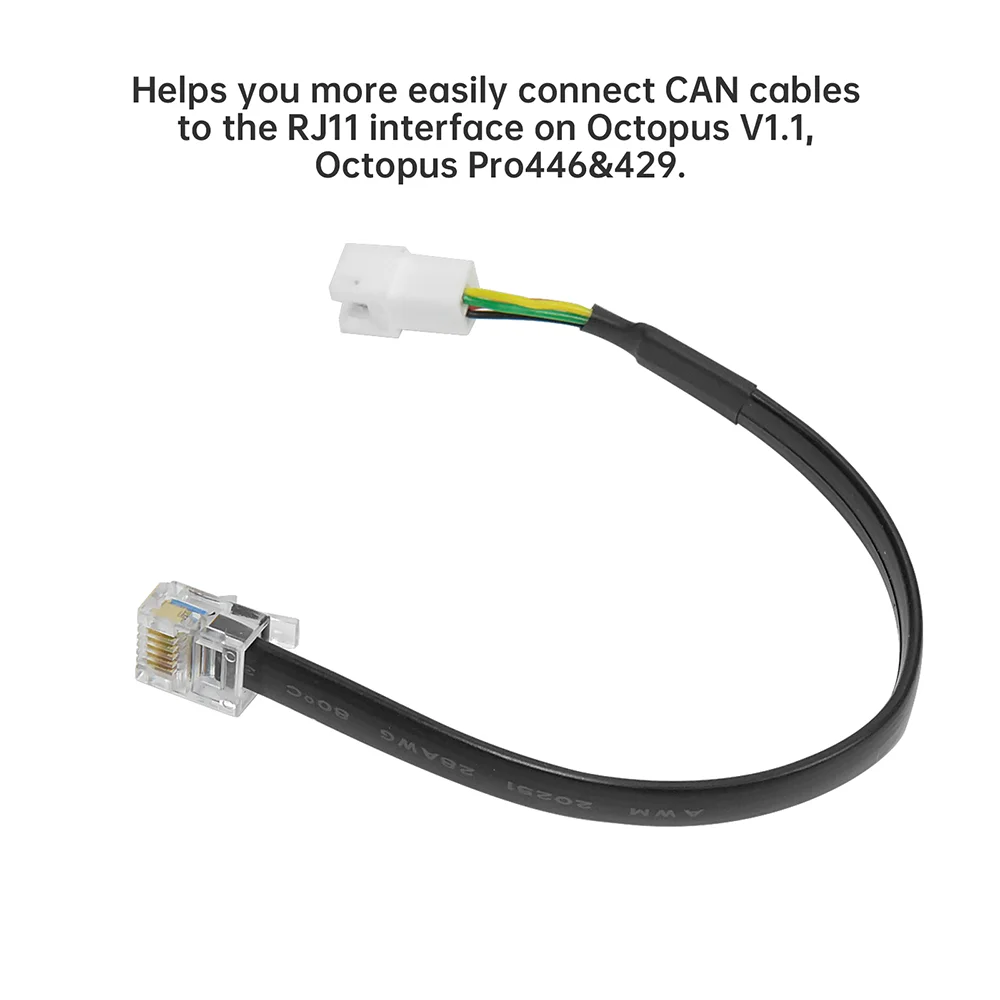

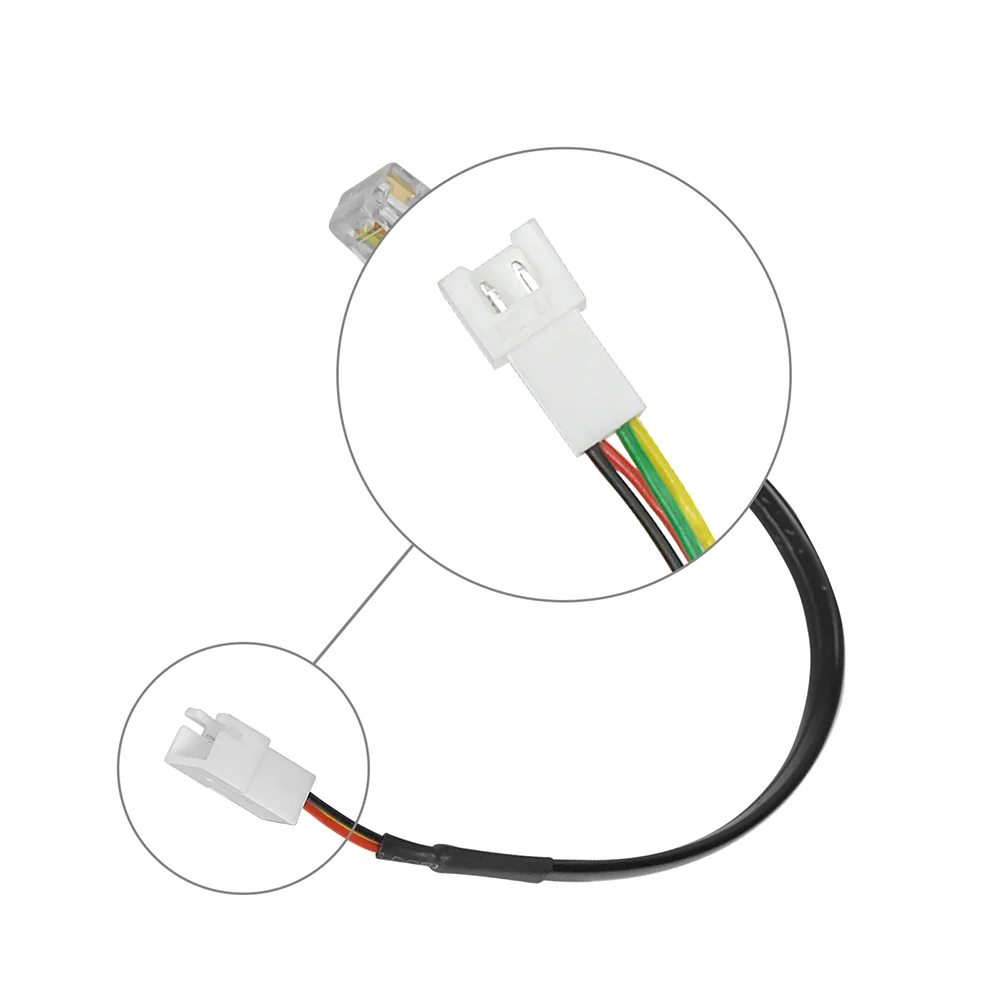

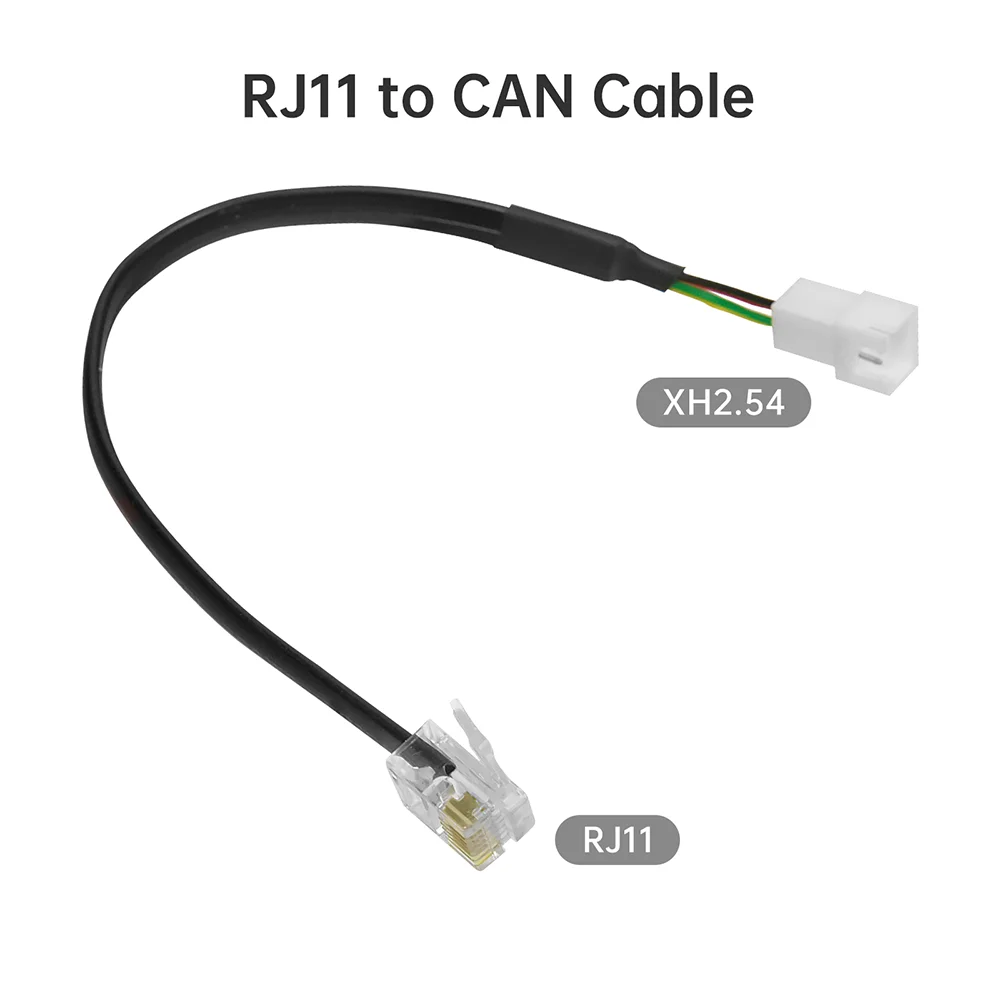

CANBus: CANBus With RJ11 Interface

Cartridge Heater: 4

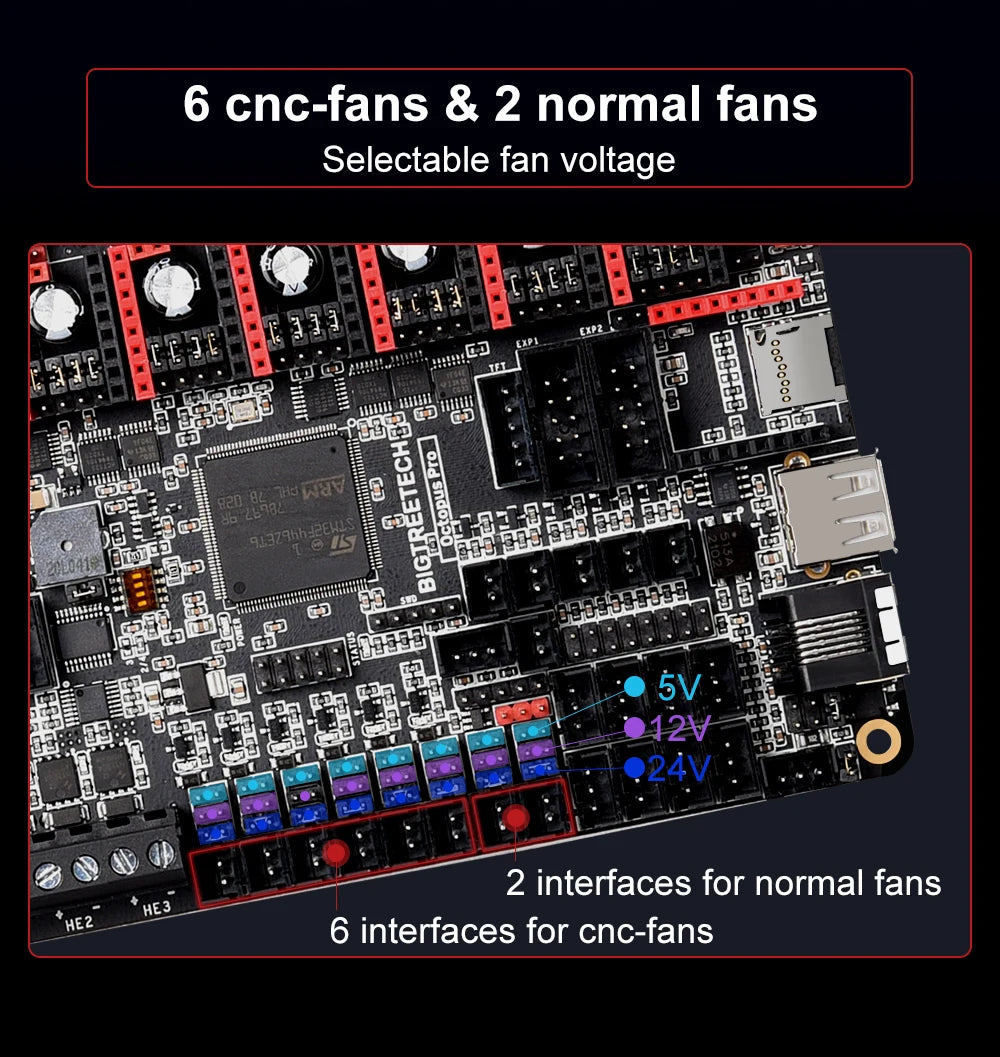

Controllable Fan: 6

Dile Format: G-code

Display: BIGTREETECH TFT LCD12864 LCD2004 etc

Drive Input Level: 5V

Expanded Interface: Broken material detection power failure power off BL Touch etc

Flash: 512K/1M

Frequency: 180MHz/168MHz

Fuse: 3

HV Drive: MAX8

High-concerned chemical: None

Input Voltage: DC15-28V

Item Type: Motherboard

Limit Switch+Filament Sensor: 6+2

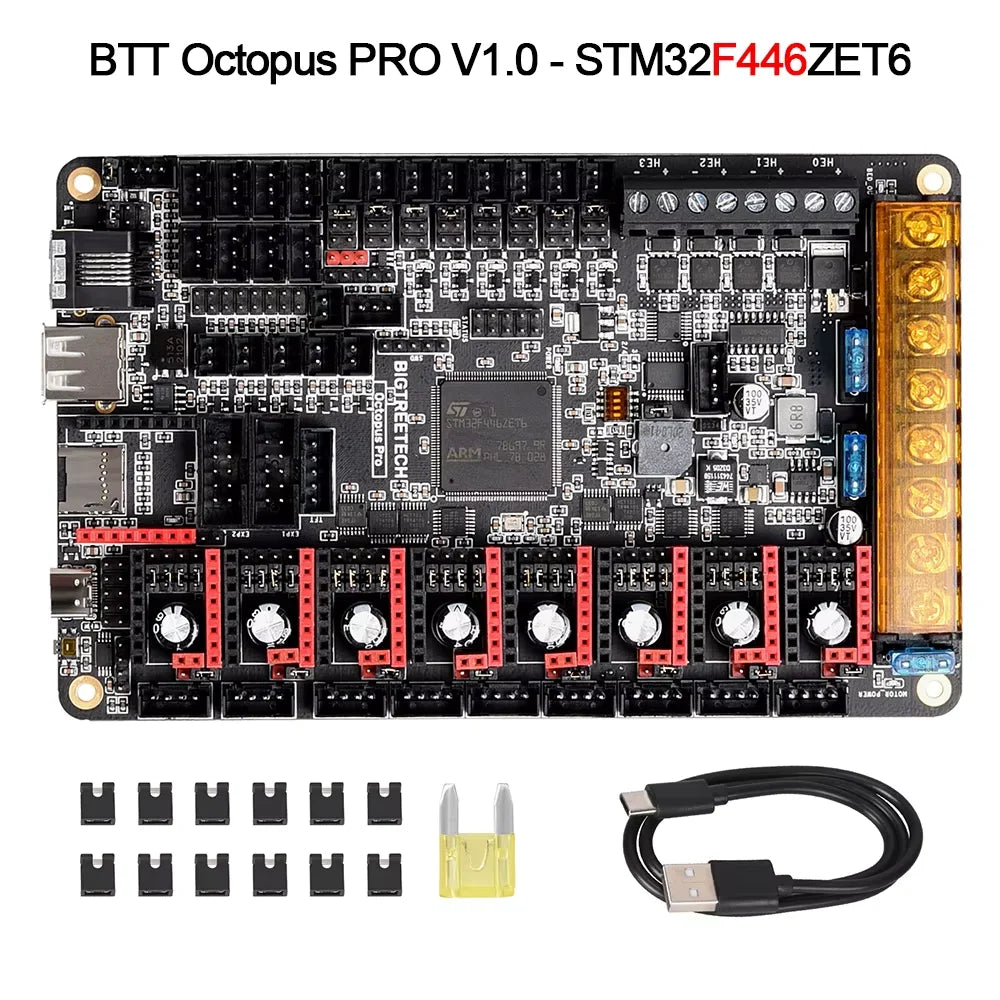

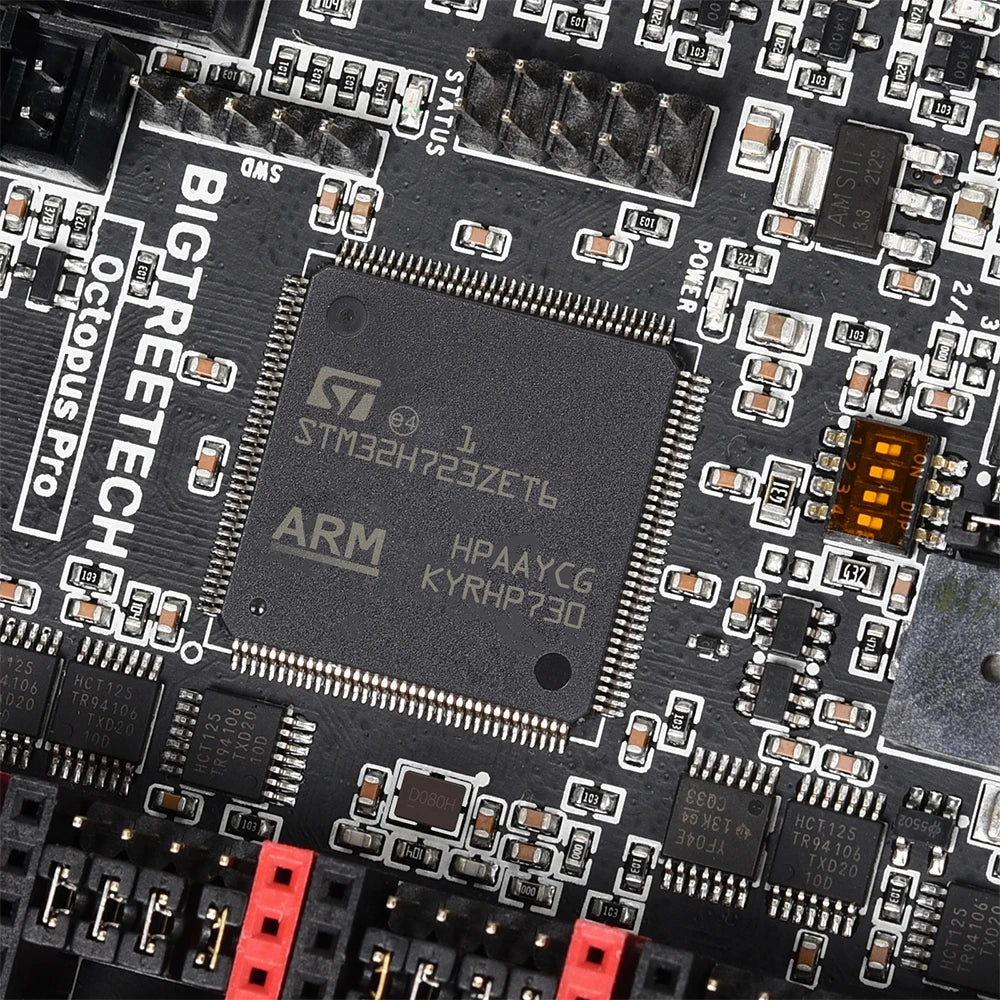

MCU: STM32F446ZET6 144Pin/STM32F429ZGT6 144Pin

Micro Processor: ARM 32-Bit Cortex-M4 CPU

Mode: STEP DIR UART SPI

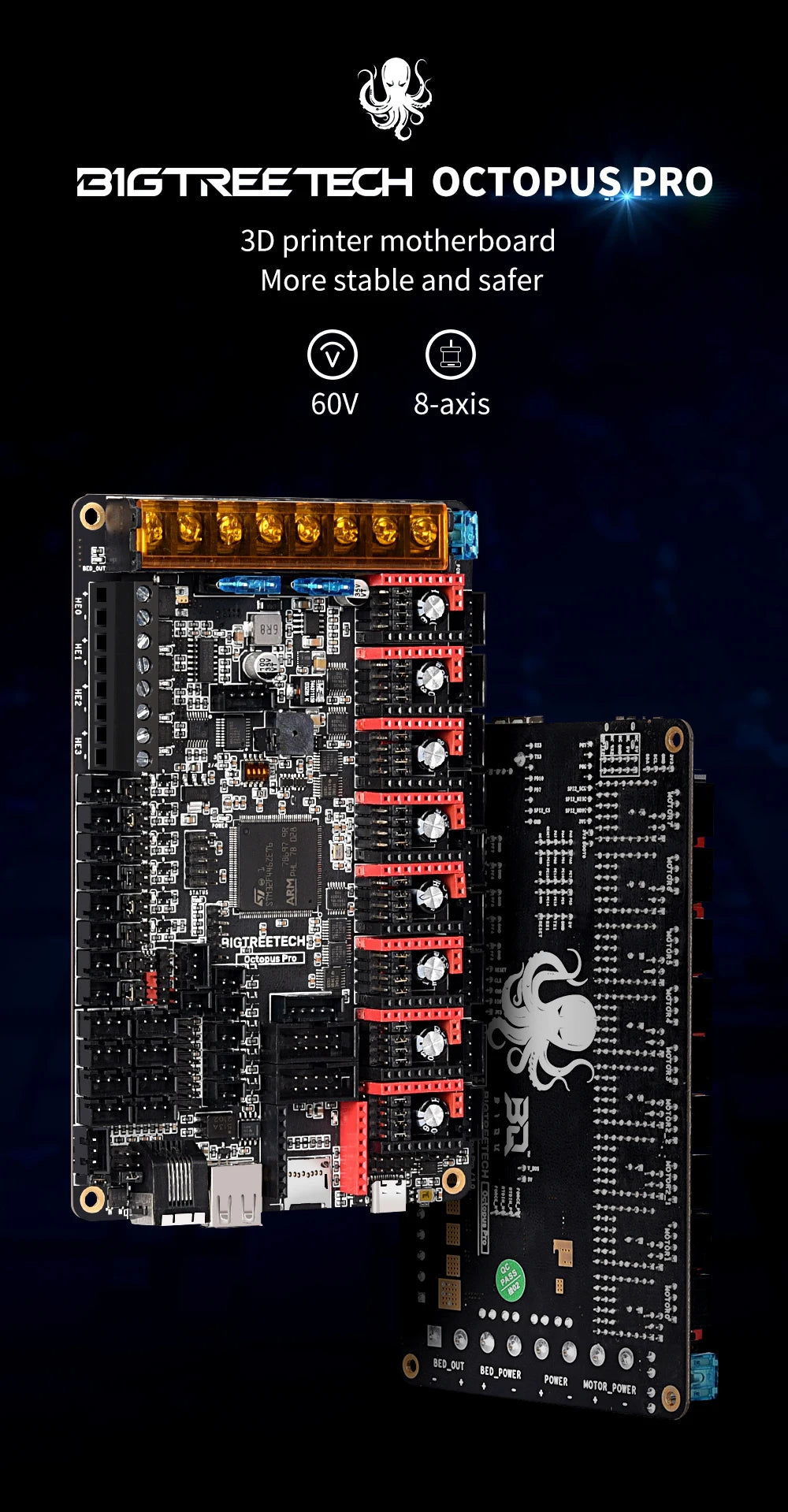

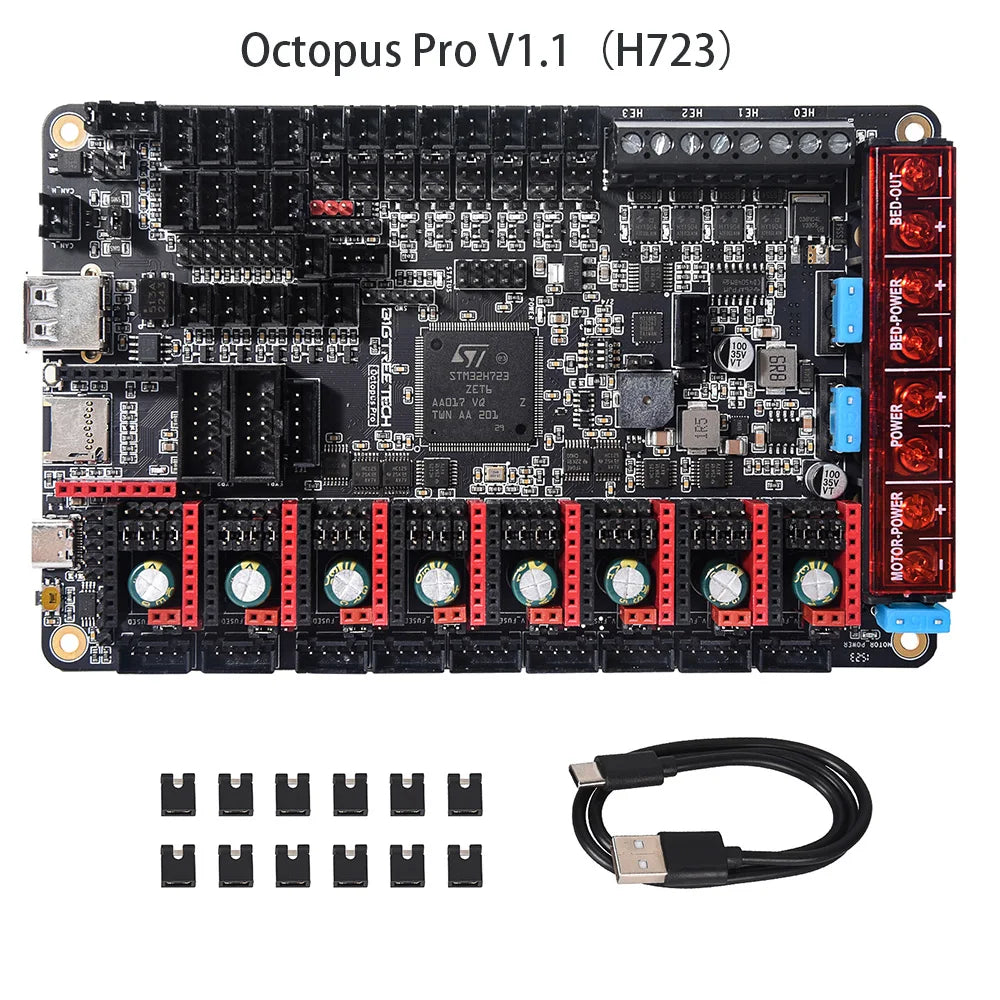

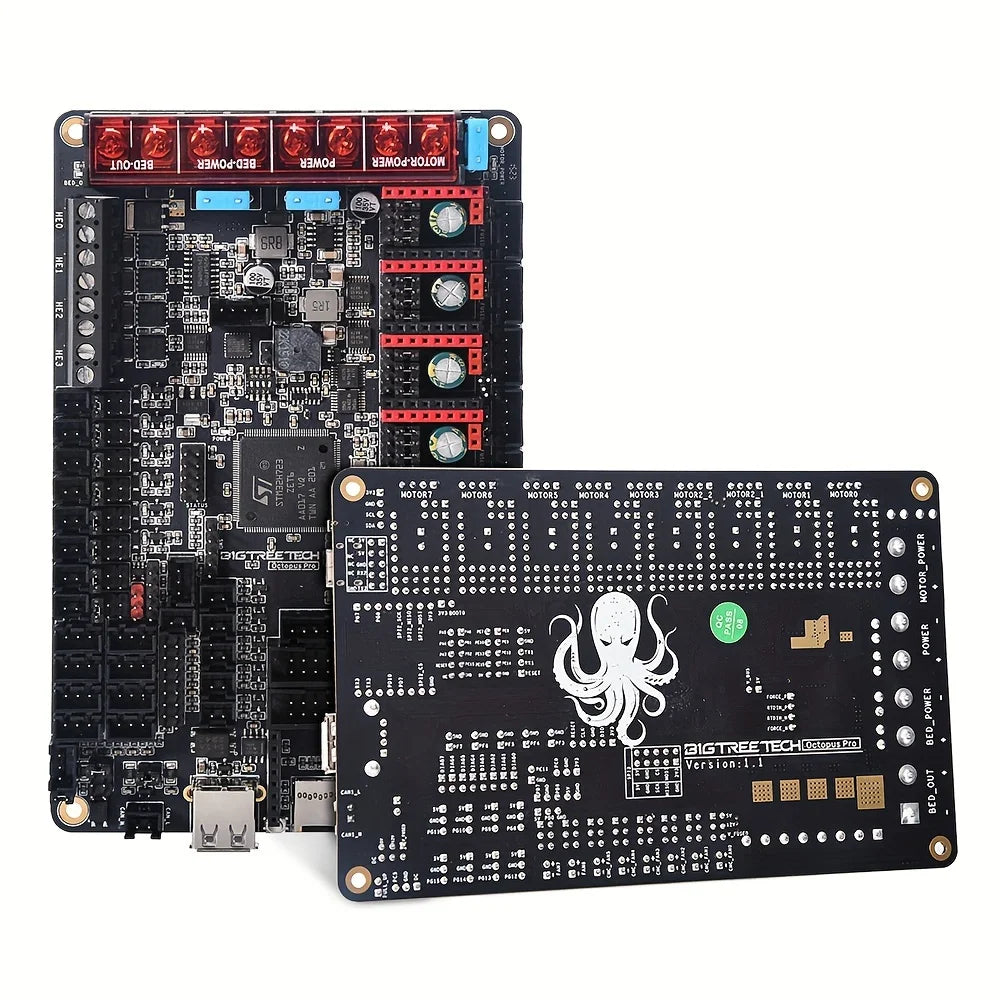

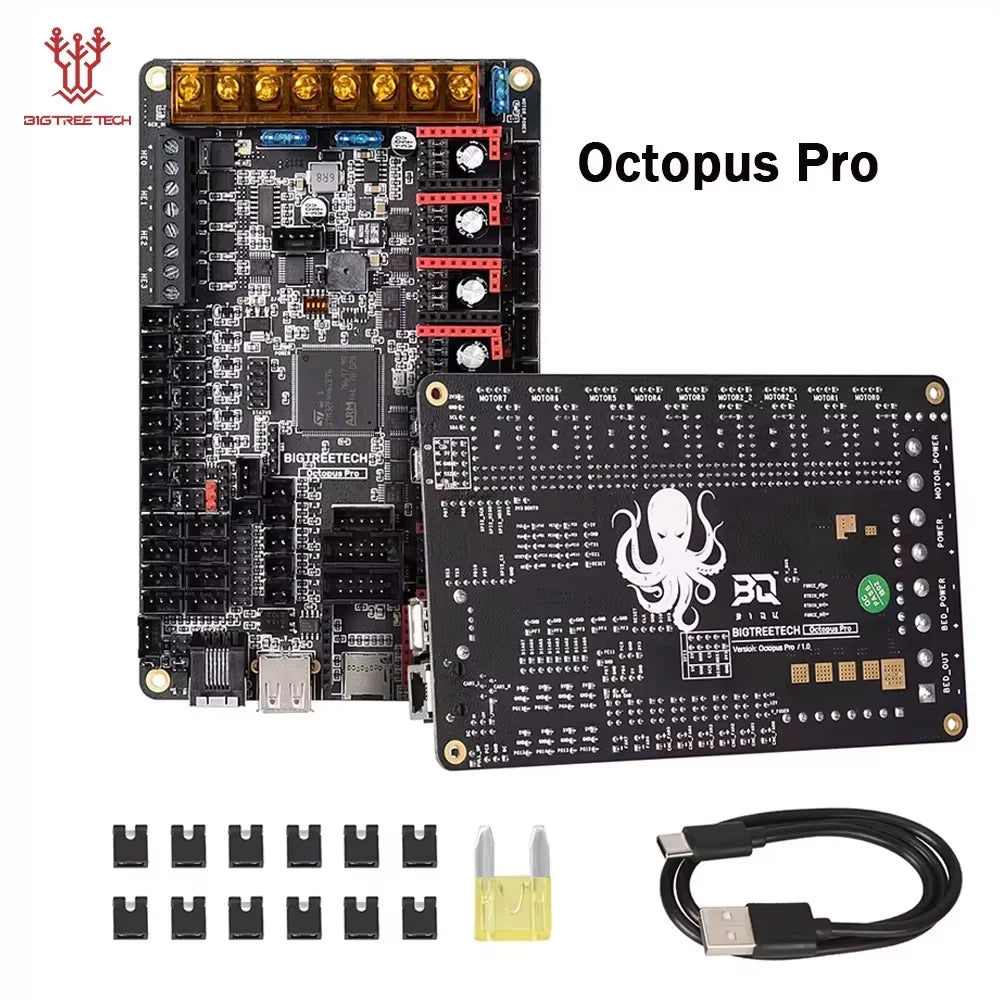

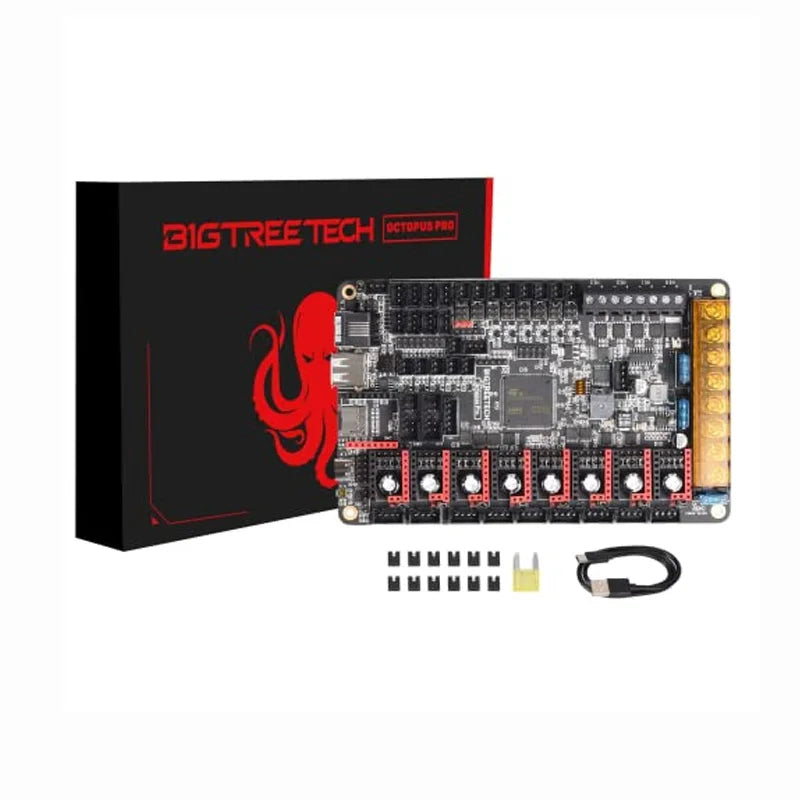

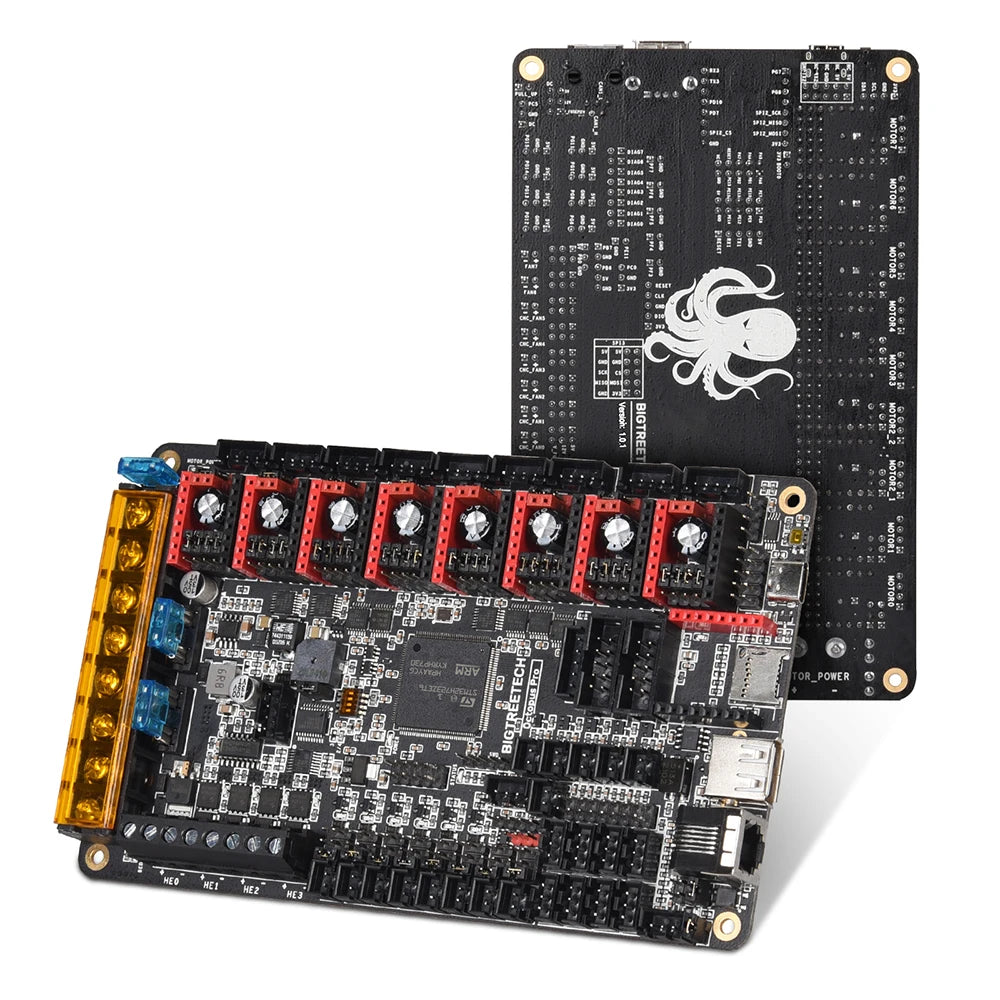

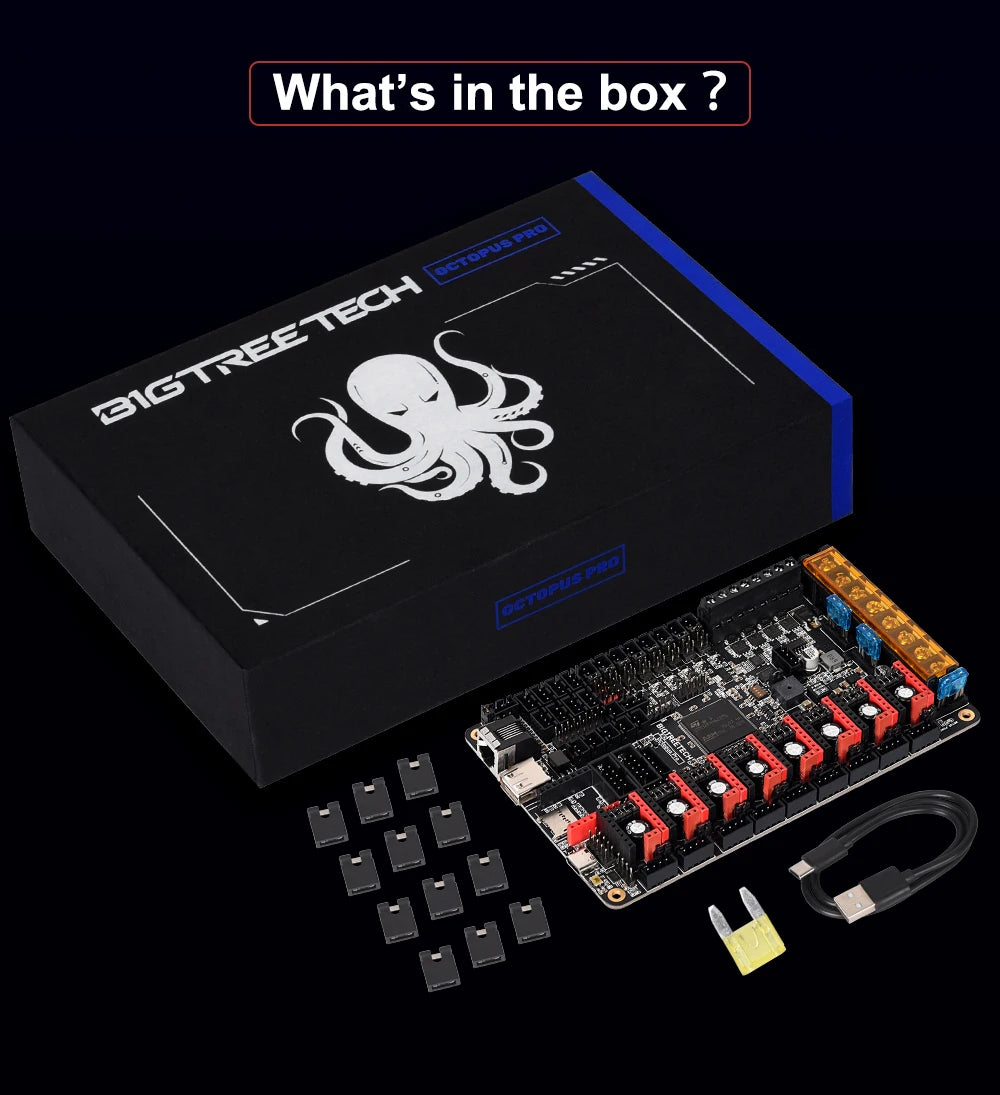

Model Number: Octopus PRO V1.0/V1.1

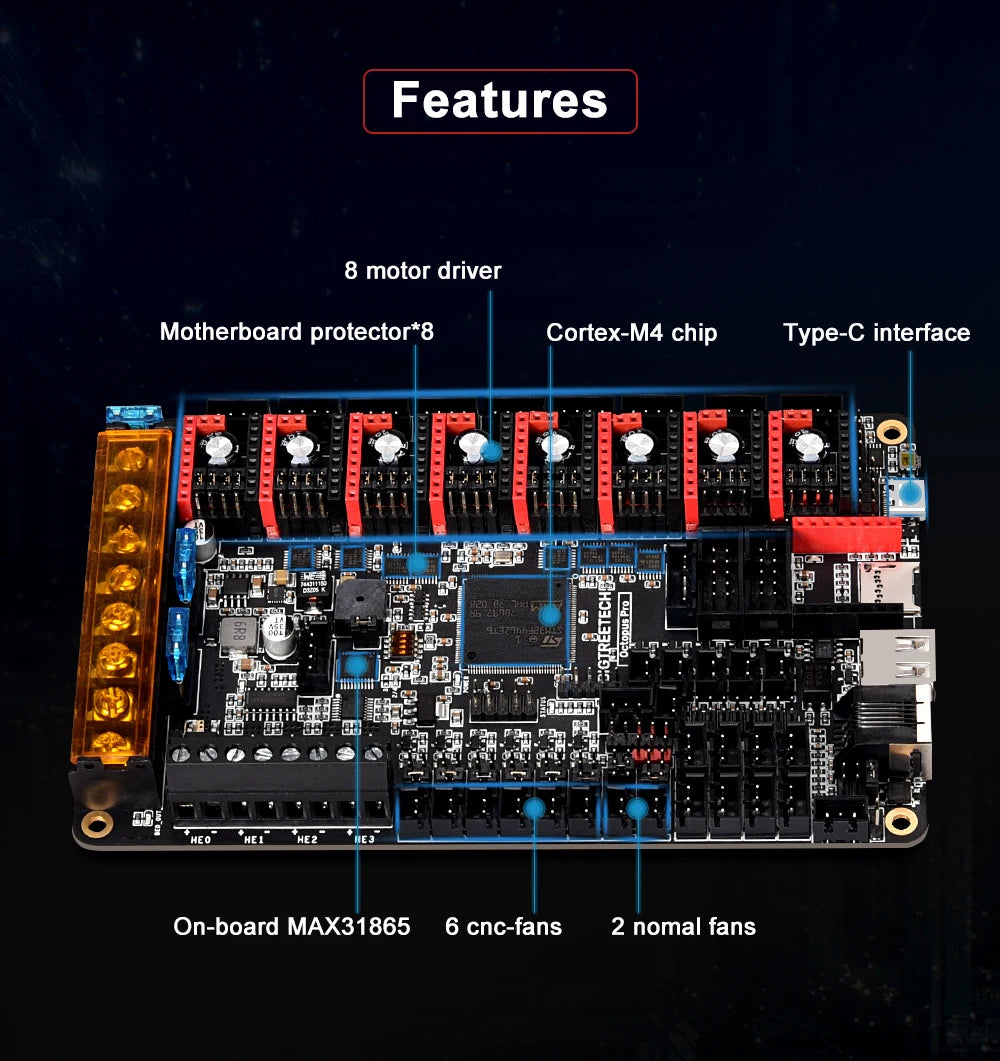

Motherboard Protector: 8

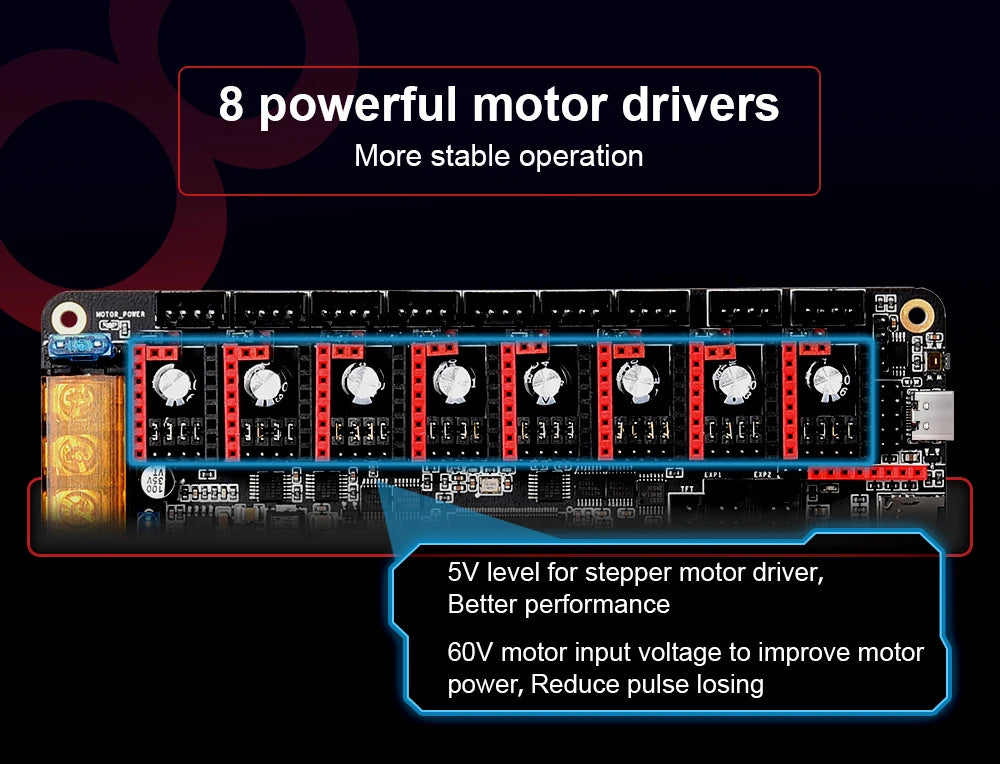

Motor Driver: Pluggable Driver,8

Motor Input Voltage: 12~60V,each one is optional,60V

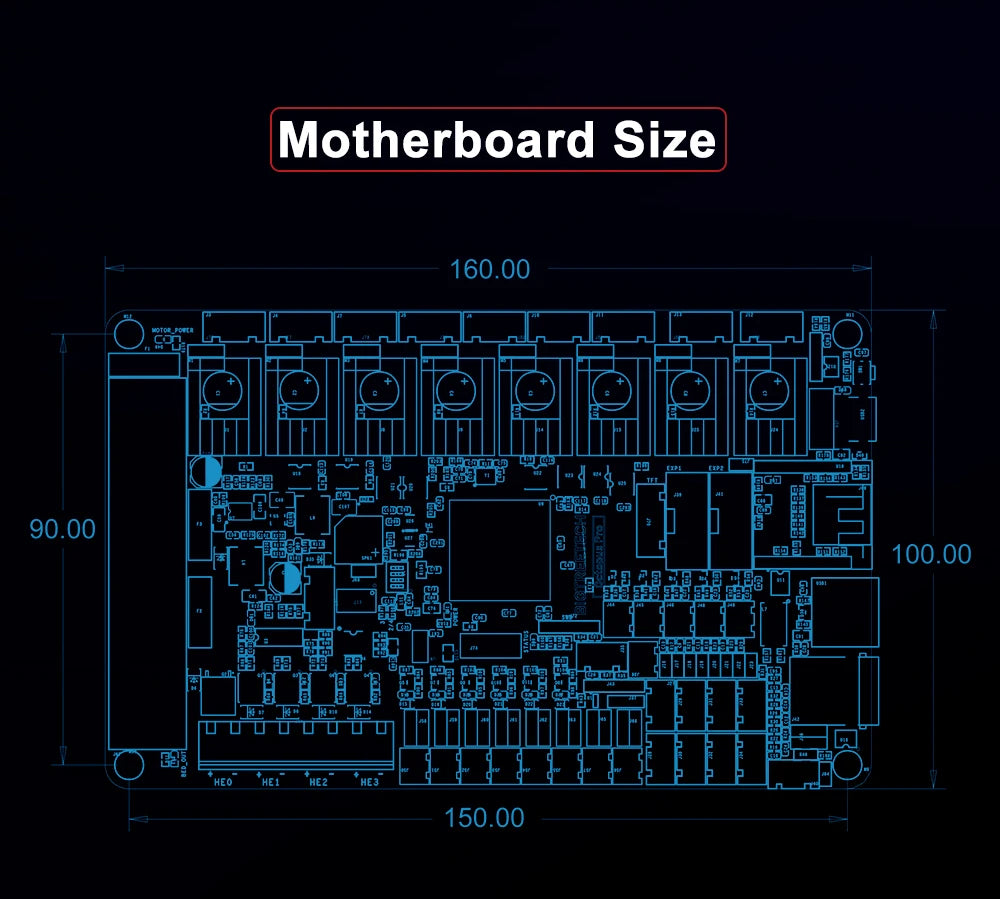

Mounting Size: 150*90mm

Normally Open Fan: 2

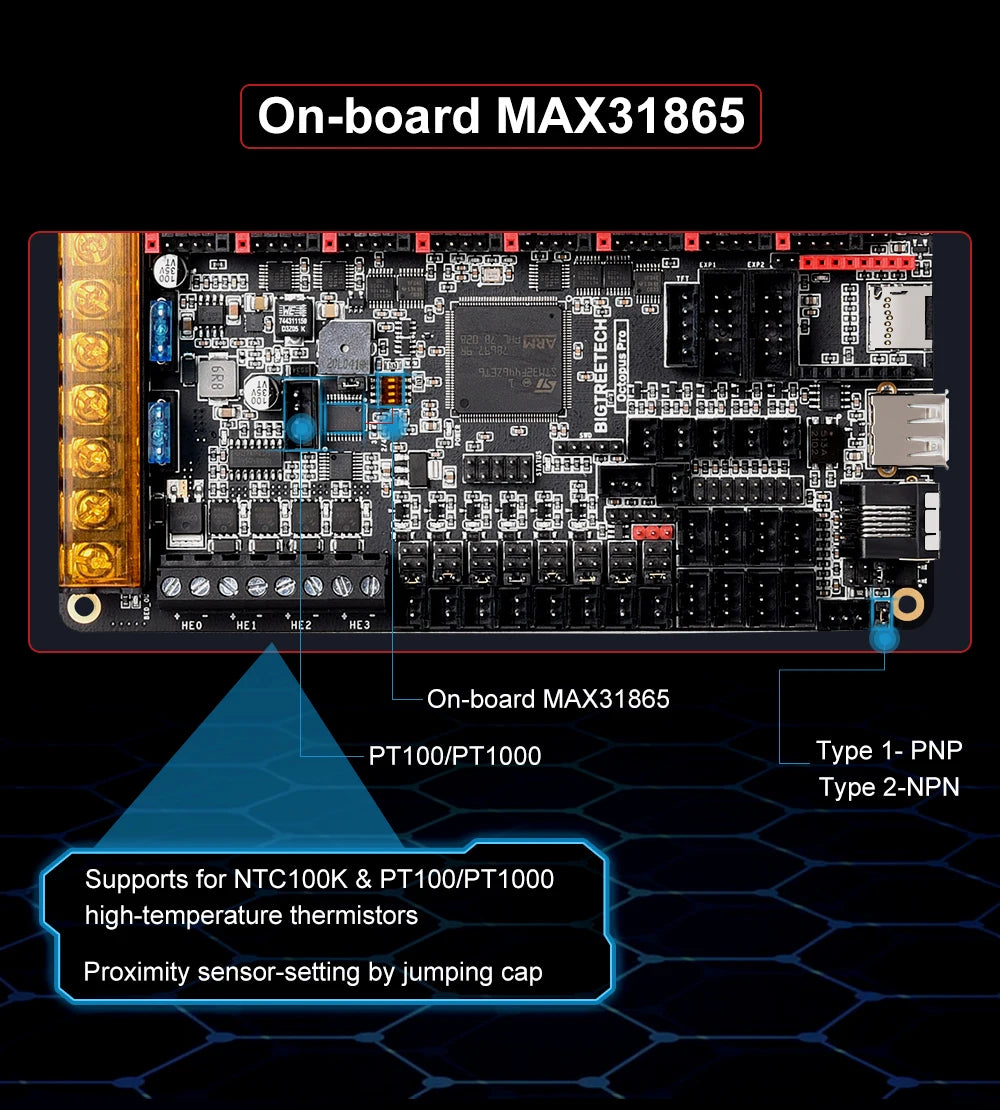

On-board MAX31865: YES

Origin: Mainland China

PC Communication Interface: Type-c easy to plug communication baud rate 115200

Product Size: 160*100mm

Recommended Slicing Interface Software: Cura Simplify3D Pronterface Repetier-host Makerware

SD Card Protocol: SDIO

Supported Firmware: Klipper Marlin RRF

Supported Operating Systems: Raspberry Pi Octoprint

Supported Wifi Module: ESP8266 MAX500k/s

Temperature Sensor Interface: TB T0 T1 T2 T3

Thermistor: NTC100K&PT100/PT1000

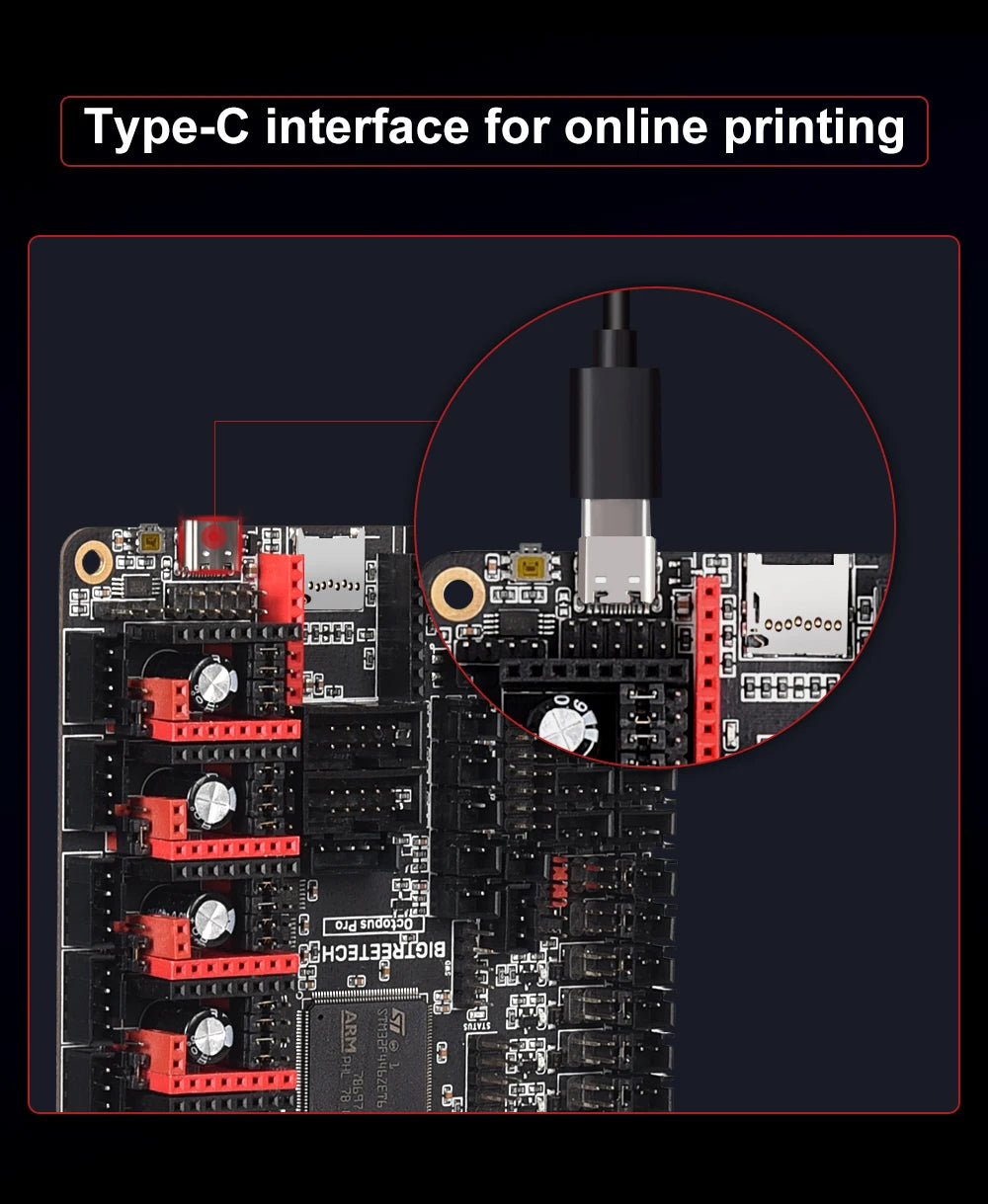

Type-C Interface: For Online Printing

WIFI Module Interface: Extension Special Interface
